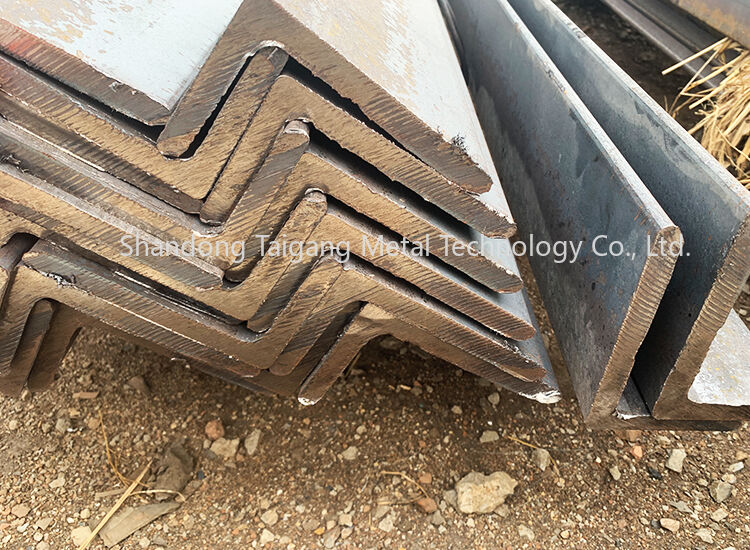

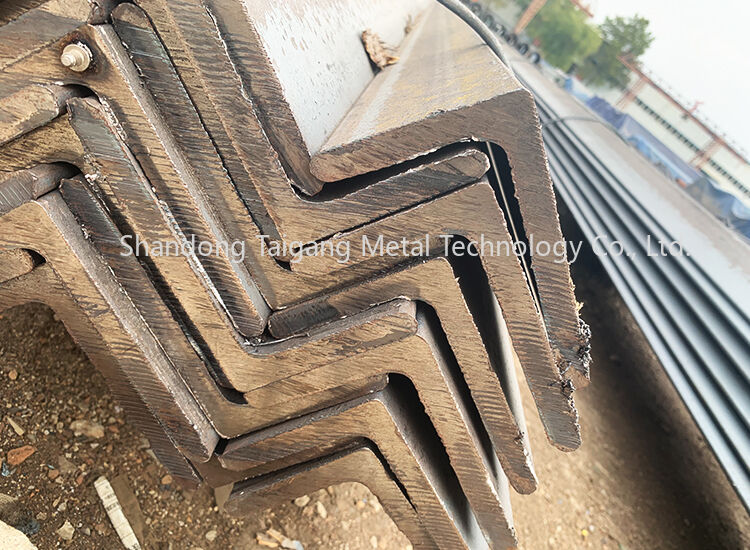

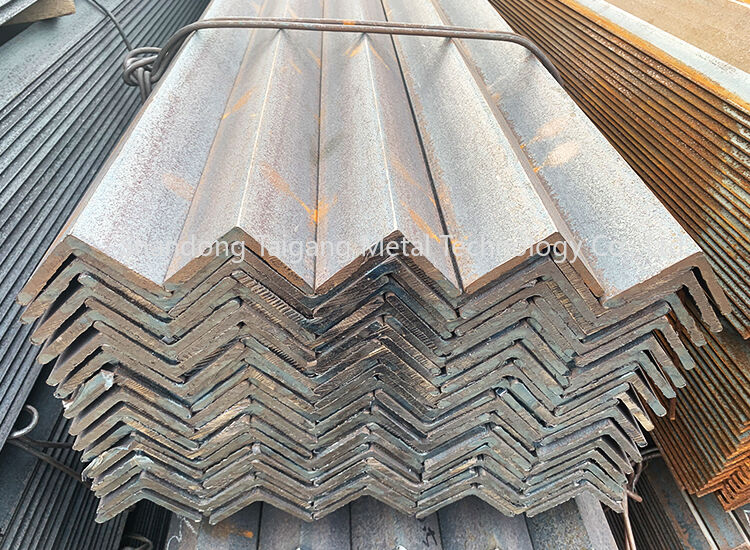

201 Angle Steel
Widely used in house beams, bridge, power transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks, cable trench brackets, power piping, busber bracket installation, and warehouse shelves.
+86 15864389004
+86 15864389004
+86 15864389004
sale2@sd-tiscometal.com
Contact Us

Product Description

Product namePrime quality hot rolled galvanized hollow iron material cut structural metal steel angle
SizeThickness: 0.8mm - 25mm; Length:1m - 12m , or according to your requests
Equal AngleType: 2#-20#;Size: 20-200mm;Thickness: 3.0-24mm; Weight: 0.597-71.168kg/m
UnequalAngleType: 2.5*1.6-20*12.5#;Size:25*16-200*125mm;Long Side: 25-200mmShort Side: 16-125mm;Thickness: 3.0-18mm;Weight: 1.687-43.588kg/m
Material201.202.301.302.304.304L.310S.316.316L.321.347,329,309S.2205.2507.2520.430.410.440.904Lect. Or Customized
StandardGB, AISI, ASTM, ASME, EN, BS, DIN, JIS
SurfaceMill finish. Galvanized.Forged.Hot Rolled.Cold Drawn.Peeled or customized
Trade TermFOB CIF CFR CNF EXW
Applicationwidely used in a variety of architectural and engineering structures,such asa.) beams, bridges, ship;b.) transmission tower, reaction tower;c.) lifting transportation machinery;d.) industrial furnace;e.)container frame, warehouse goods shelves, etc
PackageStandard export sea-worthy packing or customized
Lead Time15~21 days after deposit
PaymentTT/LC
Samplewe could offer the sample for free charge but do not pay the cost of freight.





Equal angle steelSpecification(mm)Unequal angle steelSpecification(mm)
25*25*3/432*20*3/4
30*30*3/440*25*3/4
40*40*3/4/545*28*3/4
45*45*3/4/5/656*36*3/4/5
50*50*3/4/5/663*40*4/5/6/7
56*56*3/4/5/870*45*4/5/6/7
63*63*4/5/6/8/1075*50*5/6/8/10
65*65*6/7/8/980*50*5/6/7/8
70*70*4/5/6/7/890*56*5/6/7/8/
75*75*5/6/7/8/10100*63*6/7/8/10
80*80*5/6/7/8/10100*75*6/7/8/9/10/12
90*90*6/7/8/10/12100*80*6/7/8/10
100*100*6/7/8/10/12/14/16110*70*6/7/8/10
110*110*7/8/10/12/14125*75*7/8/9/10/12
120*120*8/9/10/12125*80*7/8/10/12
125*125*8/10/12/14140*90*8/10/12/14
130*130*9/10/12/13/15150*90*9/10/12/15
140*140*10/12/14/16150*100*9/12/15
150*150*12/15/19160*100*10/12/14/16
160*160*10/12/14/16180*110*10/12/14/16
175*175*12/15200*125*12/14/16/18
180*180*12/14/16/18
200*200*14/16/18/20/24
250*250*25/35



Origin of countryChina  Shandong
Product NameAngle Steel
StandardASTM JIS EN GB BS
GradeQ195 Q235 Q215 304 316 20Cr 40Cr 20CrMo 35CrMo 42CrMo 40CrNiMo GCr15 65Mn 50Mn 50Cr 3Cr2W8V 10# 20# 35# 45# and so on
TypeEquilateral Angle, Unequal Angle
Side LengthEquilateral Angle:20-75mm; Unequal Angle:Long side:25-90mm、Short side:16-56mm
ThicknessEquilateral Angle:3-10mm; Unequal Angle:3-8mm
Length3000-9000mm 4000-12000m 4000-19000m 6000-19000m or customized
ApplicationWidely used in house beams, bridge, power transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks, cable trench brackets, power piping, busber bracket installation, and warehouse shelves.

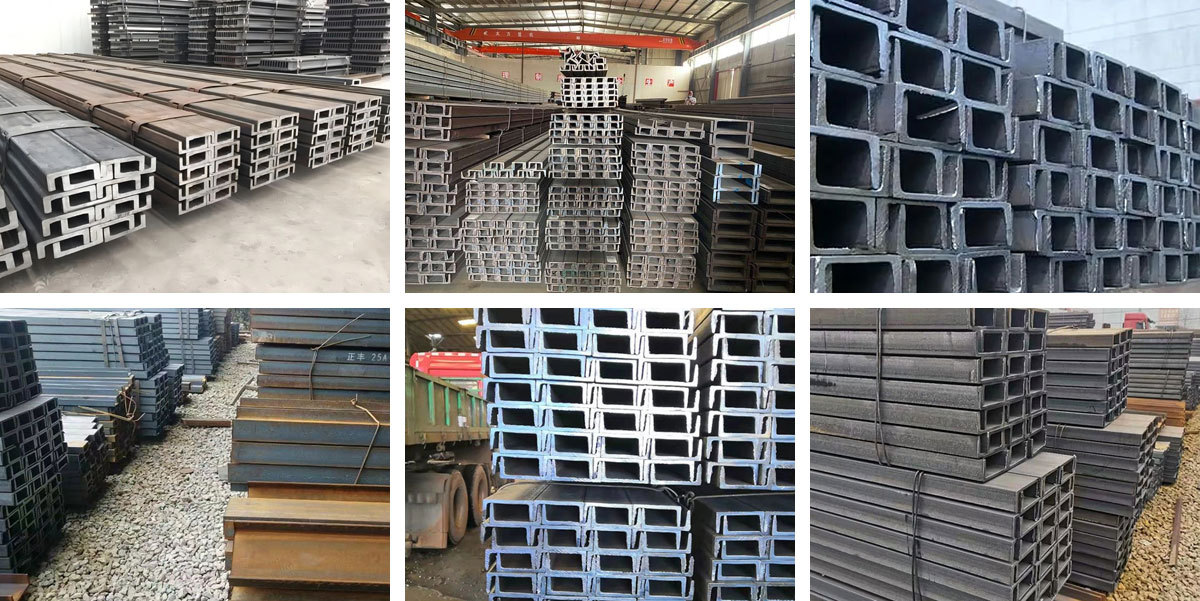

Product Display
